Trooper sa3100

$79.00$819.00

Level IIIA Soft Armor Panel

Upgrade Accessories

$179.00
$489.00$539.00

About

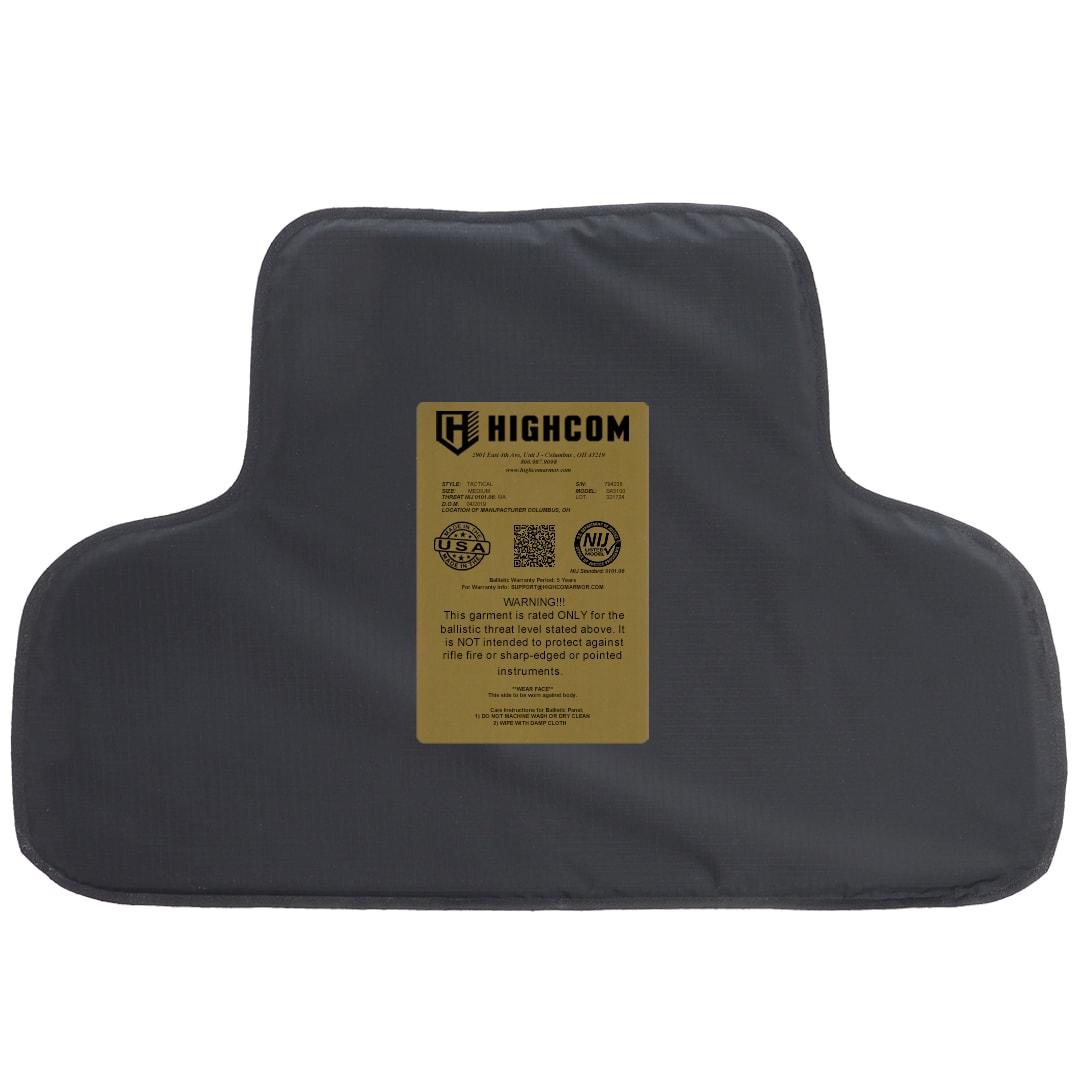

The Trooper sa3100™ is high performing, cost effective level IIIA soft armor solution. Engineered with a proprietary hybrid solution of woven and unidirectional protective materials, utilizing Twaron® aramid fibers, the sa3100 is NIJ 0101.06 compliant “Certified” by NIJ and can be found on the NIJ’s CPL (Compliant Product List).

SPECIFICATIONS

  • Protection: Level IIIA Stand Alone against handgun rounds
  • NIJ Standard 0101.06 CERTIFIED: This product is NIJ 0101.06 compliant “Certified” by NIJ and can be found on the NIJ’s CPL (Compliant Product List)
  • DEA Tested: This product meets and/or exceeds DEA standards
  • FBI Tested: This product meets and/or exceeds FBI requirements
  • Areal Density: 1.32 psf (6.44 kg/sqm)
  • Thinness: 0.29″ / 7.37mm
  • Material: A proprietary hybrid solution of woven and unidirectional protective materials, utilizing Twaron® aramid fibers
  • Multi-hit capabilities
  • Panel Cover: Ultrasonically sealed Nylon RipStop
  • Custom Sizing: Available for minimum quantity +20% surcharge per size.
  • Warranty: 5 years on all ballistic material, 1 year on exterior cover material and workmanship

NIJ LEVEL IIIA THREATS

STANDARD WEAPON PROJECTILE GR VEL FPS VEL M/S (+/- FT/S) V50 FT/S V05 FT/S
NIJ 0101.06 Handgun .357 Magnum Jacketed Soft Point (JSP) 158 1430 436 (+/- 30) x x
NIJ 0101.06 Handgun .40 S&W Full Metal Jacketed (FMJ) 180 1155 352 (+/- 30) x x
NIJ 0101.06 Handgun .357 SIG FMJ Flat Nose (FN) 125 1470 448 (+/- 30) 1808 1750
NIJ 0101.06 Handgun .44 Magnum Semi Jacketed Hollow Point (SJHP) 240 1430 436 (+/- 30) 1620 1503
NIJ 0101.06 Handgun 9mm Full Metal Jacketed Round Nose (FMJ RN) 124 1400 427 (+/- 30) x x

SPECIAL THREATS

STANDARD WEAPON PROJECTILE GR VEL FPS VEL M/S (+/- FT/S) V50 FT/S V05 FT/S
DEA 2017 Handgun 9mm Full Metal Jacketed Round Nose (FMJ RN) 124 1400 427 (+/- 50 fps) x x
DEA 2017 Handgun 40 S&W, Speer Gold Dot Hollow Point (GDHP) 165 940 287 (+/- 50 fps) x x
DEA 2017 Handgun 9mm Luger, Speer Gold Dot II 147 1015 309 (+/- 50 fps) x x
FBI Handgun 9mm +P+ (SXT) 127 1340 408 (+/- 30 fps) x x
FBI Handgun 40 S&W JHP, Speer Gold Dot (GDHP) 165 1240 378 (+/- 30 fps) x x
FBI Handgun 9mm Luger JHP, Speer Gold Dot 147 1136 346 Contact Shot x x
FBI Handgun 5.7 x 28mm SS195, Lead Free Hollow Point (LFHP) 27 2000 610 (+/- 30 fps) x x
FBI Handgun 5.7 x 28mm SS197, Hornady V-Max Blue Tip 40 1790 546 (+/- 30 fps) x x
DEA 2017 Frag US Mil-Std Frag 2 gr. RCC 2 2735 834 2961 x
DEA 2017 Frag US Mil-Std Frag 4 gr. RCC 4 2420 738 2552 x
DEA 2017 Frag US Mil-Std Frag 16 gr. RCC 16 2080 634 2126 x
DEA 2017 Frag US Mil-Std Frag 64 gr. RCC 64 1620 494 1665 x
Mil-Std 662f Frag US Mil-Std Frag 17 gr. FSP 17 2020 616 2020 x

INNOVATIVE FEATURES

  • High Performance multi threat capable
  • Federal standards performance DEA
  • and FBI Test Standards

Product Resources

Trooper sa3100 Product Spec

External file Download

Trooper Soft Armor Overview

External file Download

Trooper Soft Armor Threat Chart

External file Download
